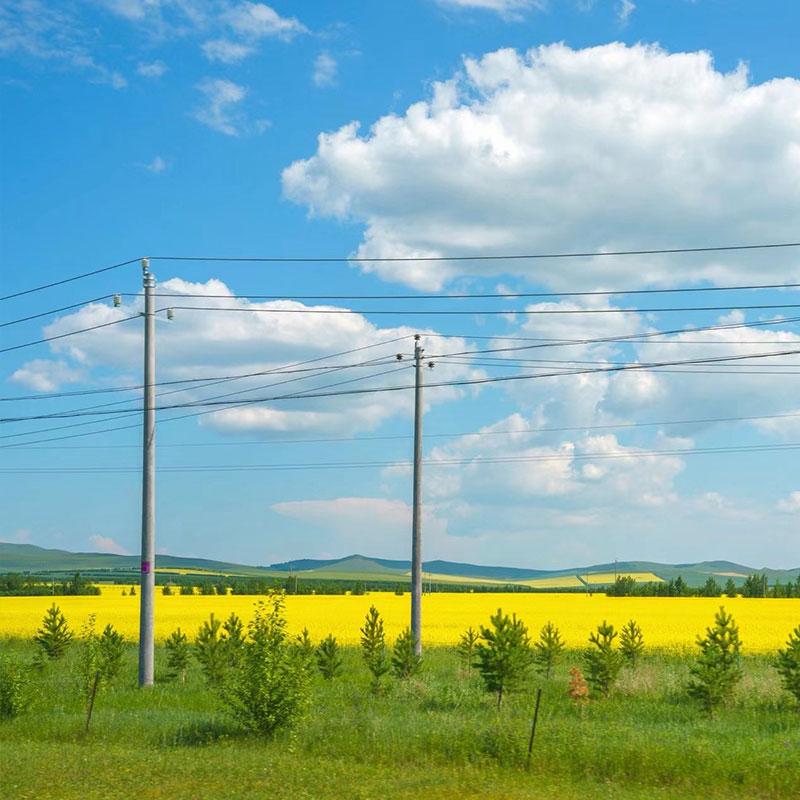

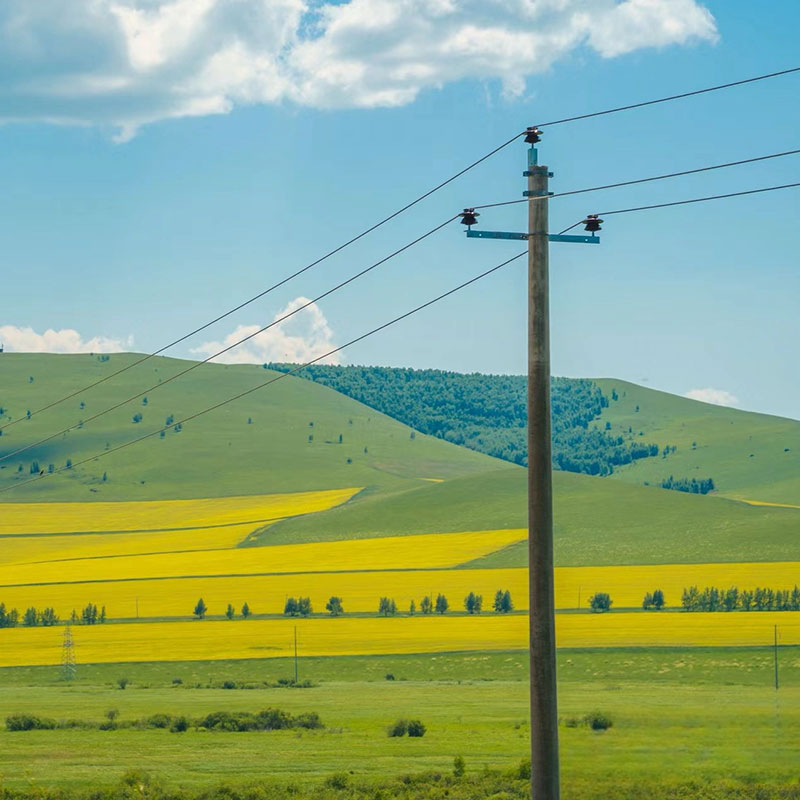

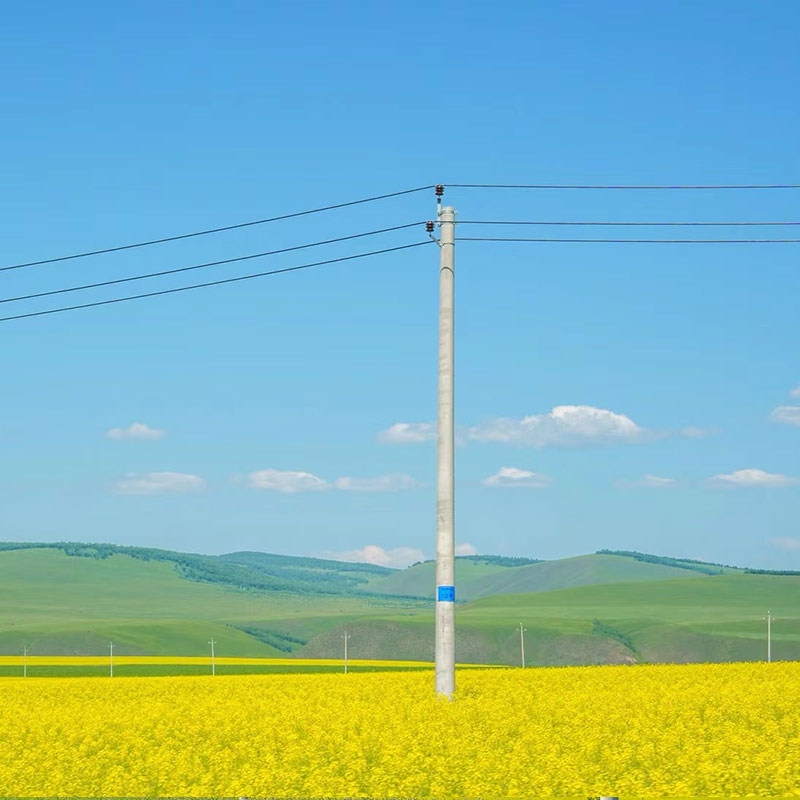

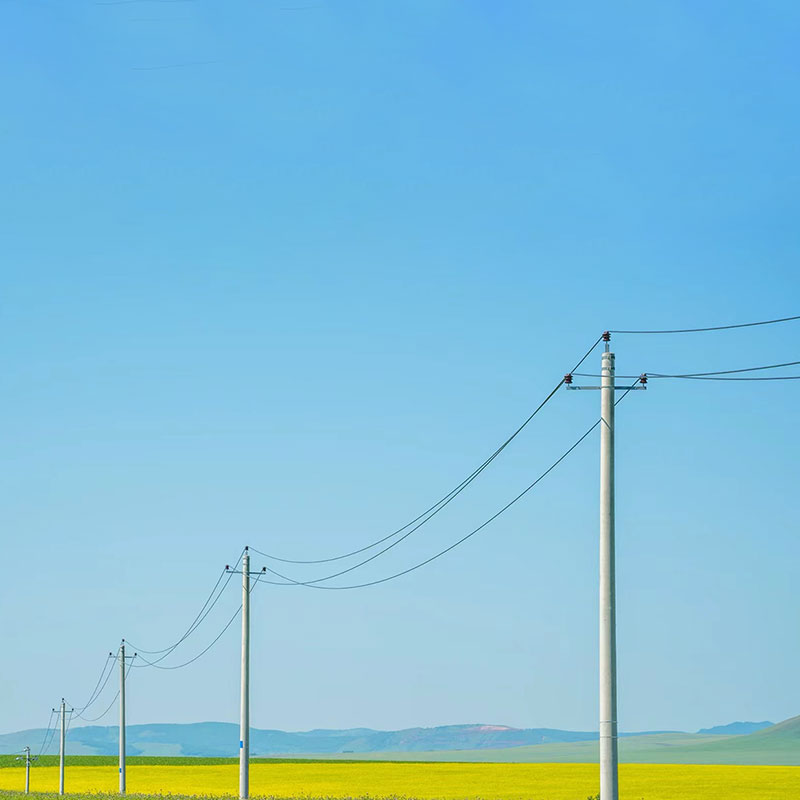

Monopole Transmission Tower

In terms of performance, the Monopole tower not only exhibits superior electrical properties but also possesses good mechanical performance and stability. With a sturdy structure and strong bearing capacity, it can effectively support and transmit power lines, ensuring the safe and stable operation of the power grid.

In summary, the Monopole transmission tower plays a vital role in the field of power transmission with its advantages of efficiency, safety, and customizability, becoming an indispensable component of modern grid construction.

Product Features of Monopole Transmission Tower

1.Space-Saving Design: The Monopole transmission tower boasts a compact and streamlined design that maximizes space utilization, making it an ideal choice for urban and suburban areas where land is limited.

2.Rapid Installation: With its prefabricated components and straightforward assembly process, the Monopole tower can be installed quickly and efficiently, reducing construction time and costs.

3.Appeal: The sleek and modern appearance of the Monopole transmission tower enhances its visual appeal, blending seamlessly into the surrounding environment and minimizing visual impact.

4.High-Strength Materials: Constructed from high-quality, high-strength steels such as Q235B and Q345B, the tower ensures durability and resilience, capable of withstanding extreme weather conditions and long-term use.

5.Excellent Corrosion Resistance: The tower undergoes rigorous surface treatment processes, including hot-dip galvanizing or painting, to provide superior corrosion resistance and extend its lifespan.

6.Versatile Structure: Available in single-tube or multi-tube configurations, the Monopole tower offers robust support and wind pressure resistance, accommodating a wide range of voltage levels and transmission distances.

What is a monopole transmission tower?

While transmission tower is a structure made of one truss, Monople tower is a structure made of tubes. In this comparative study Transmission line tower and Monopole tower has to be compared for minimum space, weight and cost by evaluating axial force, displacement and weight of tower.

What are the disadvantages of monopole towers?

Monopoles are generally more costly than lattice angle towers due to higher cost of plates. Monopole requires specialized plate bending machine with high capital cost.

Are transmission towers AC or DC?

Most North American transmission lines are high-voltage three-phase AC, although single phase AC is sometimes used in railway electrification systems. DC technology is used for greater efficiency over longer distances, typically hundreds of miles.

Why do we need transmission towers?

Transmission towers are the most visible component of the power transmission system. Their function is to keep the high-voltage conductors (power lines) separated from their surroundings and from each other.

What is monopole in transmission lines?

Monopoles are a viable alternative as they require only one-sixteenth of the space sought by lattice towers for erection while being capable of attaining heights higher than 50m. Additionally, Monopoles have other distinct advantages over towers such as faster installation and shorter delivery times.

Product Key attributes

Product Application

Get the patent certificate of products are "a kind of uhv ac single loop line tower", "a kind of applicable to (the rod tension transposition of the tower, tower of a new lightning protection device, the wind resistance, rugged tower", "a kind of outdoor cable terminal support structure of the tower", "a kind of tower Angle of the structure in the iron tower to do", "a kind of strengthening basic structure "Steel tower with anti-falling guide rail device", etc.

Angle steel according to the different needs of the structure composed of a variety of force components, but also for the connection between the components, widely used in various structures and engineering structures, such as equipment frameworks,beams, bridges, transmission towers, Lifting transport machinery, ships, industrial furnaces, reaction towers, container racks and warehouses etc.The following is the angle specifications.

Production Equipment

The company is equipped with complete production equipment, inspection and testing equipment and instruments, With 3200 tons of large bending machine, 2400 tons of large bending machine, CNC steel joint production line, CNC Angle drilling production line, CNC flame cutting machine, CNC punching machine, shearing machine, roll machine, drilling machine, h-beam assembling machine 80, flange correction machine and automatic welding, shotblast cleaning equipment, large-scale assembly platform, the clamping fixture and other kinds of production equipment more than 200 sets.

The company has a physical laboratory, chemical laboratory, equipped with raw material inspection and testing equipment, all kinds of size, shape tolerance testing and welding seam testing instruments and measuring tools more than 80 sets; With a complete set of office automation equipment, a complete set of NSA computer aided design system and tower lofting software TMA, it has an annual production capacity of 60,000 tons of various types of steel towers and 12,000 tons of steel structures.

FAQ：

1.Q: Can you do OEM for me?

A: We accept all OEM orders,just contact us and give me your design,we will offer you a reasonable price ASAP.

2.Q: Can you do design for me?

A: We have experienced engineers,we can design for you,Just give me your ideas.

3.Q: When can I get the quotation?

A: We usually quote you within 24 hours after we get your inquiry.If you are very urgent to get the quotation,please call us or tell us in mail,so that we could regard your inquiry priority.

4.Q: How about the delivery date?

A: For normal items delivery time is 25-35 days

5. Q: Which payment way is workable?

A: T/T,L/C at sight etc.
