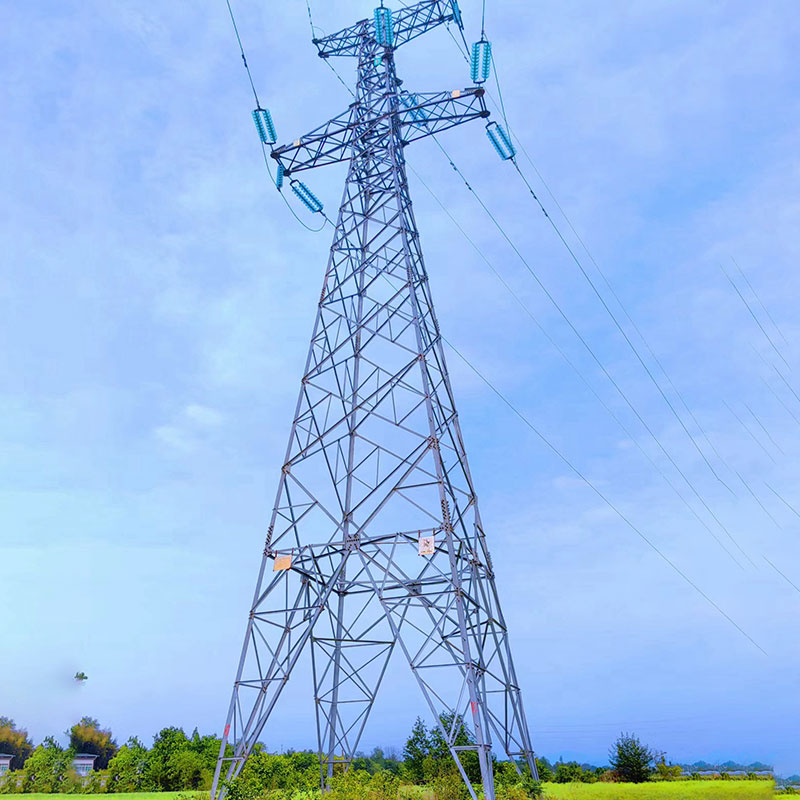

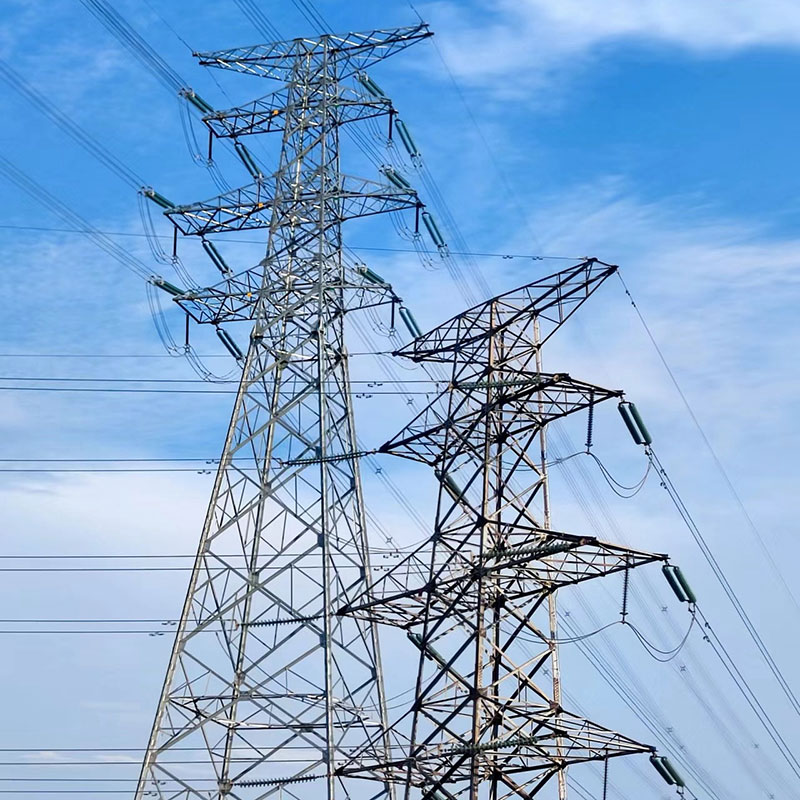

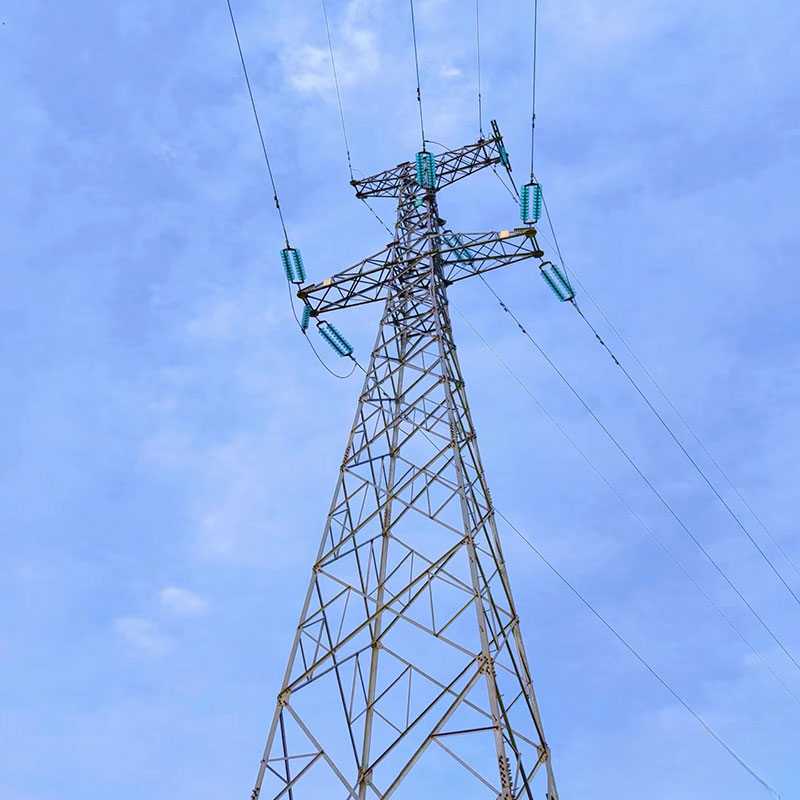

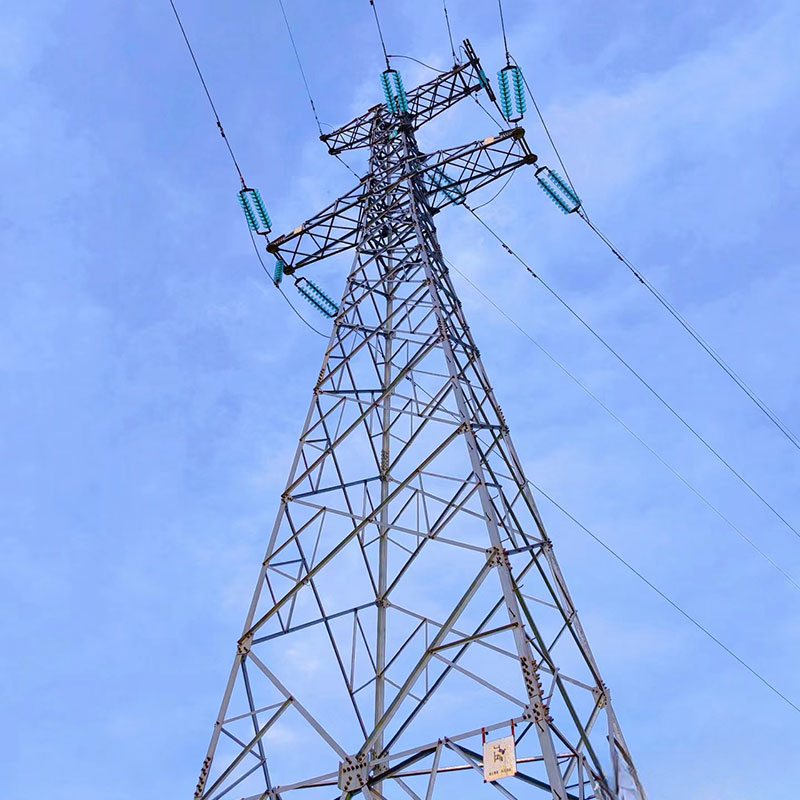

High Voltage Transmission Tower

High Voltage Transmission Towers serve as vital components in modern power transmission systems, tasked with safely and efficiently conveying high-voltage electricity to distant regions requiring electrical power. These towering structures are not only the backbone of the electrical grid but also the lifeline ensuring stable national energy supply and socio-economic development. The design of High Voltage Transmission Towers meticulously considers structural strength, stability, and environmental adaptability. Typically constructed from high-quality steel or advanced composite materials, they are engineered to withstand extreme weather conditions such as strong winds, heavy rain, and ice storms. Furthermore, they possess excellent electrical insulation properties to prevent energy loss and safety hazards during power transmission.

Send Inquiry

Product Description

Features of High voltage transmission tower

1.Structural Integrity & Strength: Constructed from durable materials like high-grade steel or advanced composites, these towers exhibit exceptional structural integrity and strength, enabling them to withstand harsh environmental conditions and maintain stability over long periods.

2.Height & Reach: Their towering height allows for the efficient transmission of high-voltage electricity over long distances, minimizing energy losses and maximizing the reach of power grids.

3.Electrical Insulation: Equipped with advanced insulation systems, High Voltage Transmission Towers ensure safe and reliable power transmission by preventing electrical arcs and short circuits, even under extreme weather conditions.

4.Environmental Adaptability: Designed to withstand a wide range of climatic conditions, including high winds, heavy precipitation, and temperature fluctuations, these towers demonstrate remarkable environmental adaptability.

5..Durability & Longevity: The use of high-quality materials and robust construction techniques ensures that High Voltage Transmission Towers have a long service life, reducing maintenance costs and minimizing disruptions to power supply.

What is a high voltage transmission tower?

In electrical grids, transmission towers carry high-voltage transmission lines that transport bulk electric power from generating stations to electrical substations, from which electricity is delivered to end consumers; moreover, utility poles are used to support lower-voltage sub-transmission and distribution lines ...

How tall is a 220kv transmission line tower?

220-kV double-circuit LST (Height range: 110-200 ft.) Note: This information is applicable to electric transmission systems in general and not specific to any project. 500-kV single-circuit LST (Height range: 80-200 ft.) Structure sizes vary depending on voltage, topography, span length, and tower type.

Are transmission towers AC or DC?

alternating current (AC)

Electric power is normally generated, transmitted and distributed as alternating current (AC). AC power is well suited to efficient transmission and distribution, as the voltage can be increased or reduced by transformers.

Product Parameter

Height	From 10M-100M or according to client’s requirement
Suit for	Electric Power Transmission and Distribution
Shape	Polygonal or Conical
Material	Normally Q235B/A36,Yeild Strength≥235MPa
	Q345B/A572,Yeild Strength≥345MPa
	As well as Hot Rolled coil from ASTM572, GR65,GR50,SS400
PowerCapacity	10kV to 500kV
Tolerance of the dimension	According to client’s requirement
Surface treatment	Hot-dip-galvanized following ASTM123, or any other standard by client’s requirement
Joint of Poles	Slip joint, flanged connected
Standard	ISO9001:2008
Length of per section	Within 13M once forming
Welding Standard	AWS(American Welding Society)D 1.1
Production Process	Raw material test-cutting-bending-welding-dimension verify-flange welding-hole drilling-sample assemble-surface clean-galvanization or power coating /painting-recalibration-packages
Packages	Packing with plastic paper or according to client’s requirement
Life Period	More than 25 years, it is according to installing environment

COMPANY PROFILE

I.Pre-sales service of the Tower

1. Qingdao Maotong Electric Power Equipment Co., Ltd. will arrange professional business managers and designers to introduce the standard process and reasonable scheme for approval, introduce the characteristics and general situation of our products about steel towers and transmission towers, and provide users with high-quality and inexpensive products and decision-making information.

2. Technical solutions: Send professional and technical personnel and business personnel to carry out technical exchanges and design customer product layout. After repeated discussions, the two sides finally reached a design that met the customer's requirements. Deliver the goods in strict accordance with the contract, notify the consignee in time after delivery, load the goods in strict accordance with the provisions, safely and timely deliver the goods to the destination designated by customers, and accept customers' consultation on product varieties, specifications, technical characteristics, process standards and main uses at any time.

2. Service sales

1, mau power equipment company in the technology design, optimization design, strives for perfection, close cooperation with design institute, your company, ensure the smooth progress of design work, and actively listen to the requirements of site operation staff, perfect design, such as design institute need to change, use units have special requirements, our factory will fully meet the requirements, And try our best to coordinate good cooperation with all parties.

2, choose domestic accessories manufacturers, not only meet the performance requirements, but also facilitate future maintenance, accessories supply.

3, in the manufacturing process, we fully cooperate with the arrangement of drawing review, product supervision, inspection and acceptance and other stages of work, so that the work before the product delivery can be orderly.

3. After-sales service

1. When the products are sent to users, our factory will send special personnel to unpack and count them together with relevant personnel of your company.

2. Ensure the normal and smooth operation of the products during the installation and debugging of the equipment.

3. Establish contact with maintenance personnel and provide long-term technical support for maintenance and usage to ensure that users' requirements are met.

4. Timely provide steel spare parts to ensure customer satisfaction

(1) Timely reflect user needs;

(2) To provide high-quality and inexpensive products to ensure timely delivery;

(3) Strictly control product quality;

(4) Properly packed to prevent omission and damage.

Preliminary confirmed by my company technical personnel for the company's products quality problem, customer return the product, the final diagnosis for product quality problem, our company bear the freight back and forth, by my company technical staff after preliminary said the company product quality problem, customer return the product, the final diagnosis for product quality problem, our company will bear the freight to return the products to customers, If the goods are returned without the confirmation of our technical staff and business staff, we will not bear any costs.

Note: if there is a problem after sale, we can provide service, but we can not replace the parts caused by damage and improper operation.
