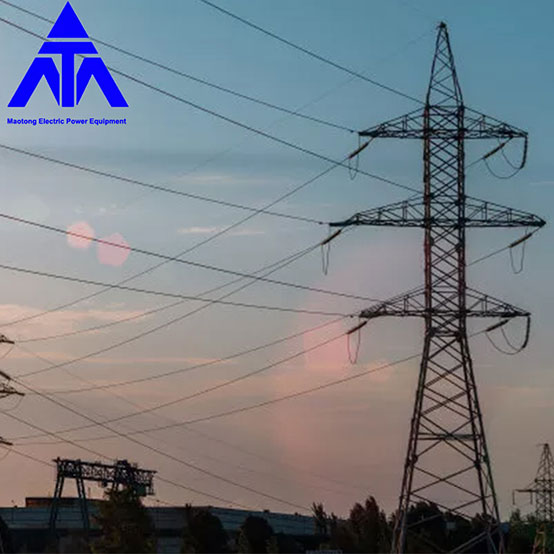

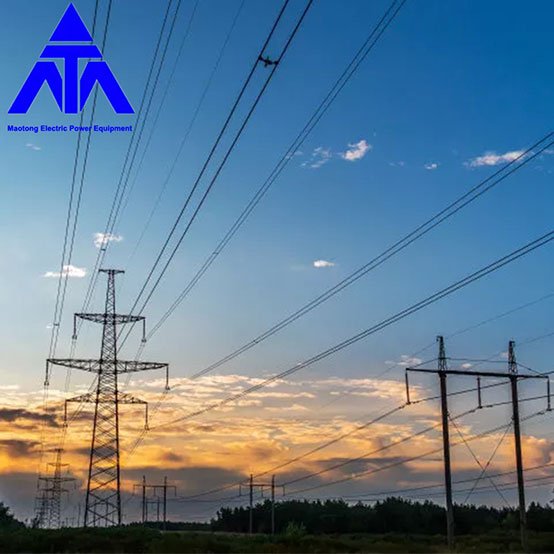

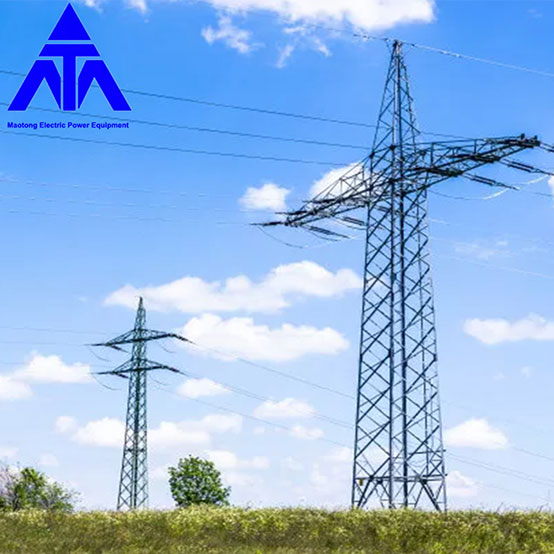

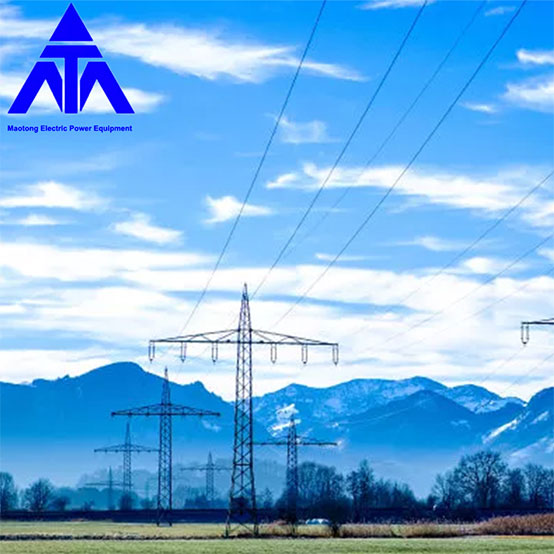

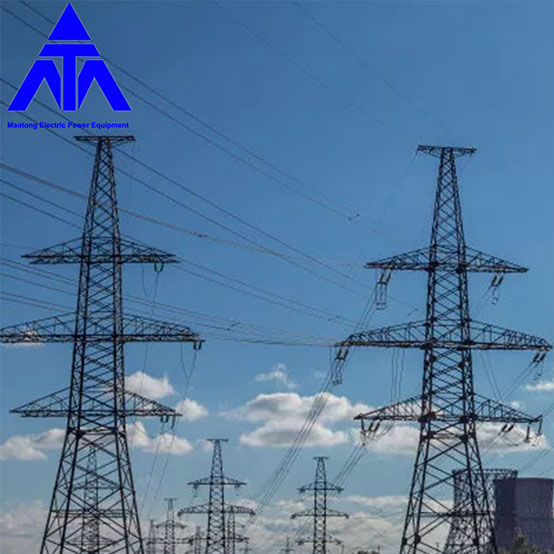

Transmission Electric Line Angle Tower 110kv 132kv 230kv

Qingdao Maotong ® Power Tower Co., Ltd. is a factory dedicated to the production and installation of steel tower masts and various steel structures such as Electrical Steel Tangent Suspension Electric Line Tower, chimney tower, lightning protection tower, anemometer tower, training tower, roof process tower, single tube tower, bionic tree, integrated base station, communication tower, monitoring tower, power tower, TV tower, Transmission Electric Line Angle Tower 110kv 132kv 230kv, etc.

Features:

1. Material: weldable structural low carbon steel angle plates, flat plates and pipes.

2. Tower legs: Chinese steel grade Q345B, which is equivalent to ASTM A572 GR50 or customized to customer's requests.

3. Other webs, braces and auxiliary steel: Chinese Q2138B, is equivalent to ASTM A36

4. Plates: Chinese steel Q345B or Q235B

5. Bolts: Chinese grade 6.8 and 8.8 or equivalent grades.

6. Dimension and tolerance for angle are according to GB/T1591-1994, similar to EN 10056-1/2

7. Hot dip galvanization in accordance with GB/T 13912-2002, which is equivalent to ASTM A 123 or custom specifications.

8. The welding is done in accordance with AWS D1.1 or CWB standard

9. Application:  electrical power transmission.

4kv, 4.8kv, 12kv, 13.2kv, 22KV, 23kv, 24KV, 24.9kv, 27.6kv, 33kv, 34.5kv, 35kv, 46kv, 66kv, 69kv, 110kv, 115kv, 132kv, 138kv, 150kv, 154kv, 161kv, 220kv, 230kv, 275kv, 287kv, 330KV, 345kv, 380kv, 400kv, 500kv, 735kv, 750kv, 765kv, 800kv, 1000kv, 1100kv, towers including angular tower, tubular tower; SST tower and guyed tower; Single circuit tower, double circuit tower and multi - circuit tower; Lattice tower or mono pole tower; H- frame, M-type tower, T-type tower, Y-type tower; And every type of utility poles, transmission &distribution poles, switch poles; Substation frameworks etc.

In tower shape ,we have type as follow:

(1) horizontal configuration

(2) vertical configuration

(3) delta configuration

(4) Self-supported delta structure

(5) H-Frame structure

(6) Guyed-vice structure

(7) Mono pole type
